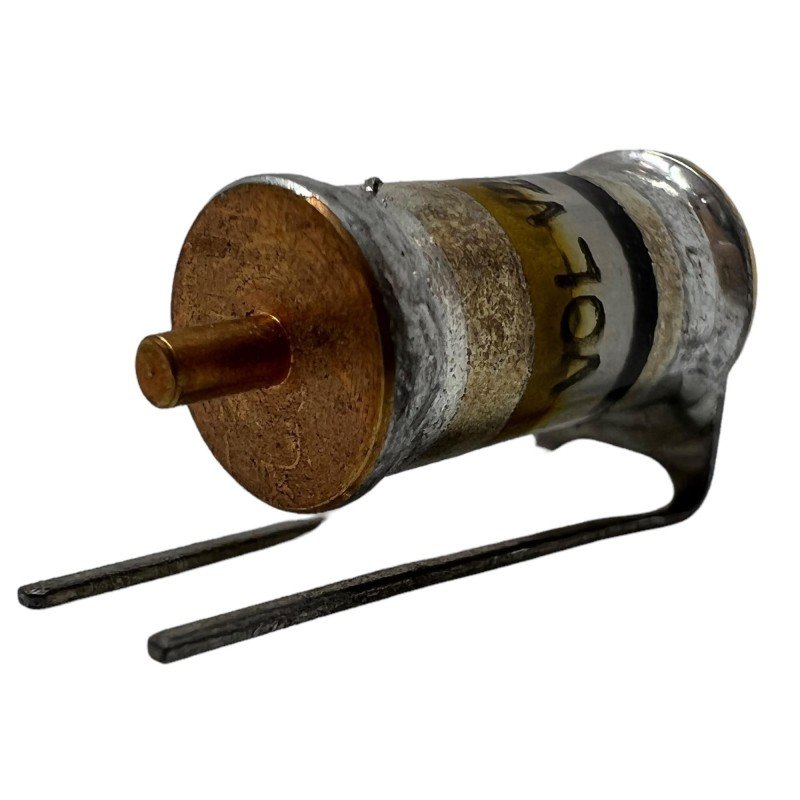

5910-01-339-6132

ADJUSTMENT DEVICE DRIVE TYPE AND QUANTITY: 1 SLOTTED SCREW
BODY LENGTH: 0.600 INCHES NOMINAL
BODY STYLE: 26 PISTON
CAPACITANCE RANGE IN PICOFARADS: 1.5 TO 40.0 SINGLE SECTION
III INSULATION DC RESISTANCE AT 25 DEG CELSIUS: 100000.0 MEGOHMS
III QUALITY FACTOR AT 25 DEG CELSIUS: 800.0
INCLOSURE TYPE: ENCAPSULATED
MOUNTING FACILITY TYPE AND QUANTITY: 3 TERMINAL
NONDERATED OPERATING TEMP: -65.0 DEG CELSIUS MINIMUM AND 125.0 DEG CELSIUS MAXIMUM
NONDERATED VOLTAGE RATING AND TYPE: 250.0 DC CONTINUOUS SINGLE SECTION
OVERALL DIAMETER: 0.210 INCHES NOMINAL
OVERALL LENGTH: 0.720 INCHES NOMINAL
TEMP COEFFICIENT OF CAPACITANCE IN PPM PER DEG CELSIUS: 0.0 SINGLE SECTION
TERMINAL DIAMETER: 0.016 INCHES NOMINAL
TERMINAL LENGTH: 0.120 INCHES NOMINAL
TERMINAL TYPE AND QUANTITY: 2 PRINTED CIRCUITS AND 1 TURRET
TOLERANCE OF TEMP COEFFICIENT IN PPM PER DEG CELSIUS: -150.0 TO 150.0 SINGLE SECTION
